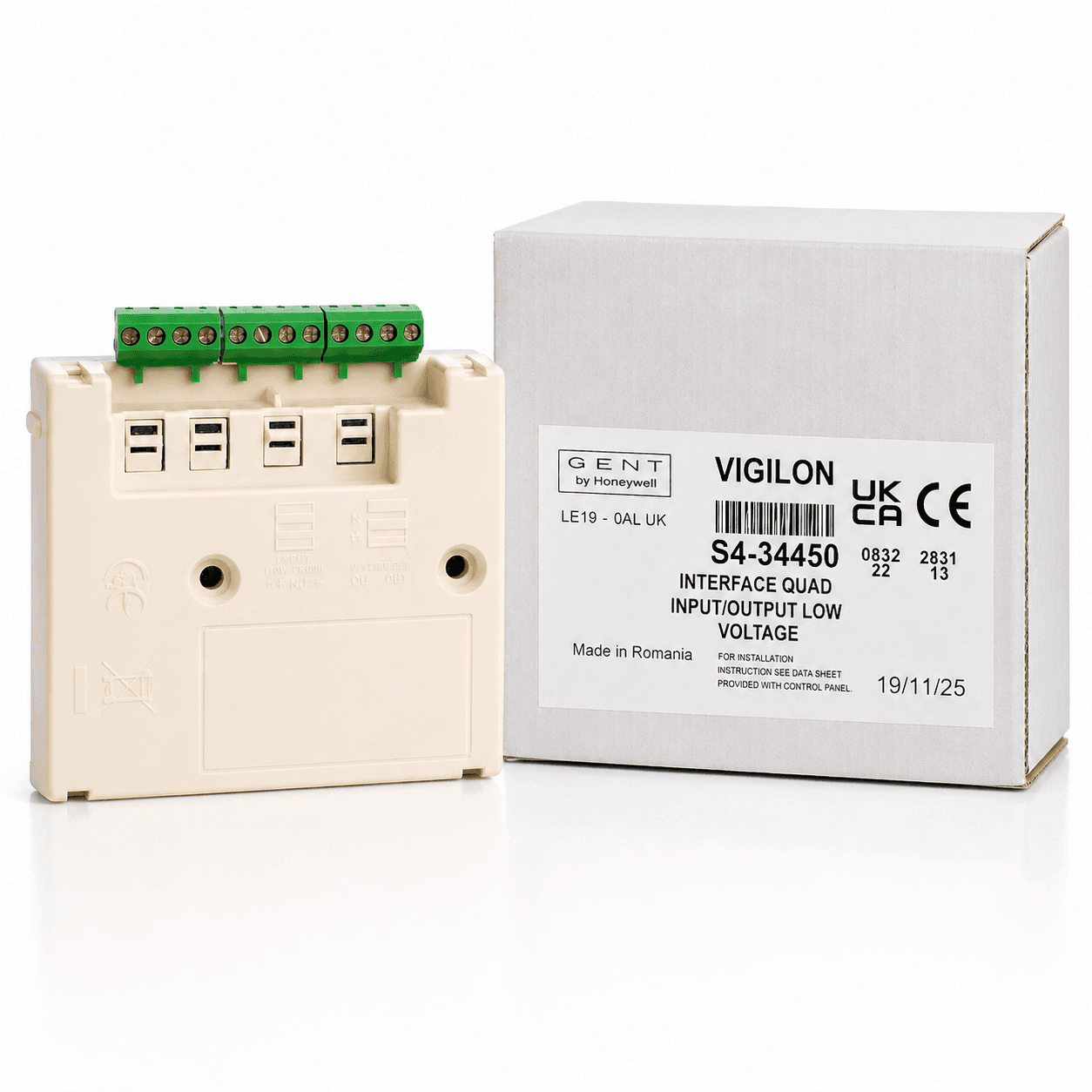

GENT 4 CHANNEL INTERFACE (INPUT/OUTPUT) (NO ENCLOSURE)

The S4-34450 is a loop powered interface designed for use with the Vigilon range of fire alarm system control panels. This interface unit features 4 input / output channels which can be used to control services within a building. Interfaces are used to link the fire alarm system to other plant management devices such as sprinklers and security systems. They can also be used to link to a zone of conventional detectors. The Vigilon system can accommodate a high capacity of single channel interfaces on the loop operating both inputs and outputs. The loop powered four channel interface range has individually sectored outputs with channel 1 set as a loop powered zone module. All interfaces are seen by the panel as one address although each input/output can have a separate label displayed at the panel. Interfaces are either powered from the loop or require a separate mains supply. The mains power version has its own battery backup. Key Features Loop Powered devices reducing cost of installation and maintenance Individual addresses to maximise information and flexible cause and effect Each device with EN54-17 short circuit handling for enhanced system integrity Comprehensive range of functionality in each device variant to simplify system design Complete range of mounting enclosures and accessories Options to connect conventional fire detectors such as flame and beam detectors Certified to EN54-17 and EN54-18
